Professional Bamboo Type Fume Extractor Arms for Welding Fumes Extraction System

Bamboo Type Fume Extraction Arms for  Welding Fumes Extractor System

Specifications:

Description:

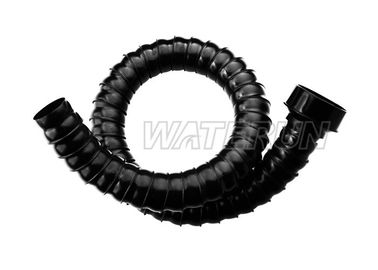

The plastic bamboo tube size 75mm x1.4m use for F6001,F6001D,F6002, F6002D fume extractors.

It is use for the No smoking pipes installed dust to cleaning the harmful air. The function is universal positioning adjustment, slightly transform length, with square smoke hood can reduce the impact of wind on smoke outside.

1.Waterun offer a wide range of volume fume extractor accessories and extractor arms with diameters of 55mm up to 90mm arms.

2.Diameter 55mm Arm with oblique round nozzle can reduce the air impact for absorb smokes.

3. Diameter 55mm Arm with square nozzle can reduce the air impact for absorb smokes.It can be easy adjustment the right position to absorb the fumes, can reduce the elements to change the length.

4. Diameter 75mm Arm with big square nozzle can reduce the air impact for absorb smokes.It can be easy adjustment the right position to absorb the fumes, can reduce the elements to change the length.

FQAS:

1. How many different extractor arms that your company have? What’s the standard length? What are commonly used?

Answers. We have bamboo type tube, soft tube and bobbin tube; the bamboo tube standard length is 1.4m, bobbin tube is 1.2meter, the soft tube can be  configure according to buyer request. The bamboo tube 75mm is commonly used.

2. The ducts for the fume extractor can be shortened or lengthened?

Answer: It can be shortened or lengthened appropriate; but we suggest not more than 1.5meter. For multi-station, the total pipe length should not exceed 10 meters.

3. What’s the material for the nozzles? Can it use in high temperature? What are their characteristics?

Answer: the nozzle material have silicone, acrylic, white iron and aluminum. Silicon material can withstand temperatures up to 400 degrees; the acrylic material good transparency but cannot resist high temperature; iron material cost economy, high temperature resistant, but not poor transparency ; Aluminum material is light weight, high temperature resistant, but price high.

4. What’s the best distance between the nozzle and the smokes?

Answer: The distance to be 5-15cm is the best.

7. Bent pipe will affect smoke purify?

Answer: Yes, it affect the suction power, it should reduce the bent rate.

8. Is it normal if the tubes gave out a steady buzzing?

Answer: It is normal, it caused by the pipeline vibration, try to straighten the bent pipes.

9. The diameter of the tubes will effect the results for absorb smokes?

Answer: Yes, the smaller diameter, the bigger suction.

10. How long needs to clean the tubes?

Answer: There’s no limited, it depends on pipeline jam situation to clean.

Applications:

Waterun Technology offer a wide range of volume fume extractor accessories and extractor arms. Customers can select the suitable accessories for the fume extractors.

Competitive Advantage:

1. One size duct fits to different models of fume extractors.

2. The same fume extractor can have different ducts for selections.

3. There’s many different nozzles for the ducts.
